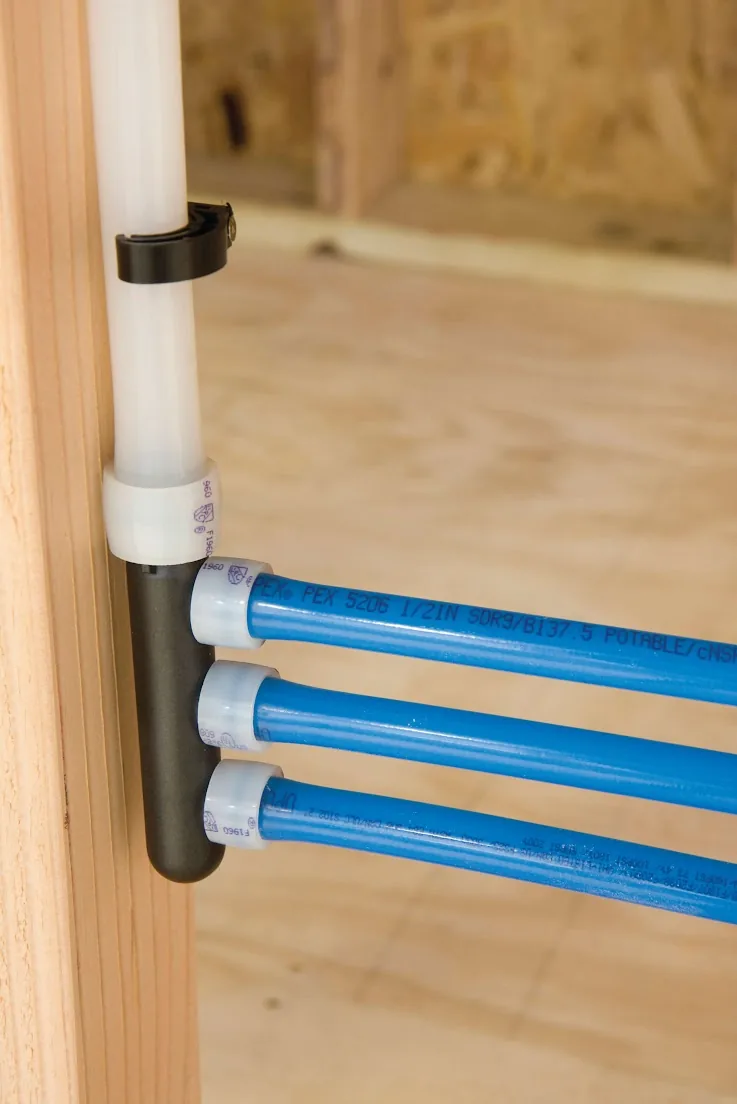

Blue PEX lines leaving a manifold fastened to a wall stud – Main Water Shutoff Valve Replacement for Laguna Hills, CA homes

When a pipe bursts, the main shutoff has to work. Why many Laguna Hills homes have stuck original valves, how a quarter-turn replacement is done, and how to find yours.

Ask a Laguna Hills homeowner where the main water shutoff is and many will point vaguely toward the front of the house. Ask when it was last turned and the answer is usually "never." That is a problem, because the main shutoff is the one valve that stops a burst pipe from flooding your home. In many of the city's 1960s and 1970s neighborhoods, the original valve is still in place and may not close when you need it.

Where the main shutoff usually is

In most Laguna Hills single-family homes, the house shutoff is where the supply line rises out of the ground near the front wall or garage, often next to a hose bib. Some homes have it in the garage near the water heater. Condos and townhomes may have a shutoff inside the unit or one shared valve controlled by the association. The meter box at the curb also has a valve, but that one belongs to the water district.

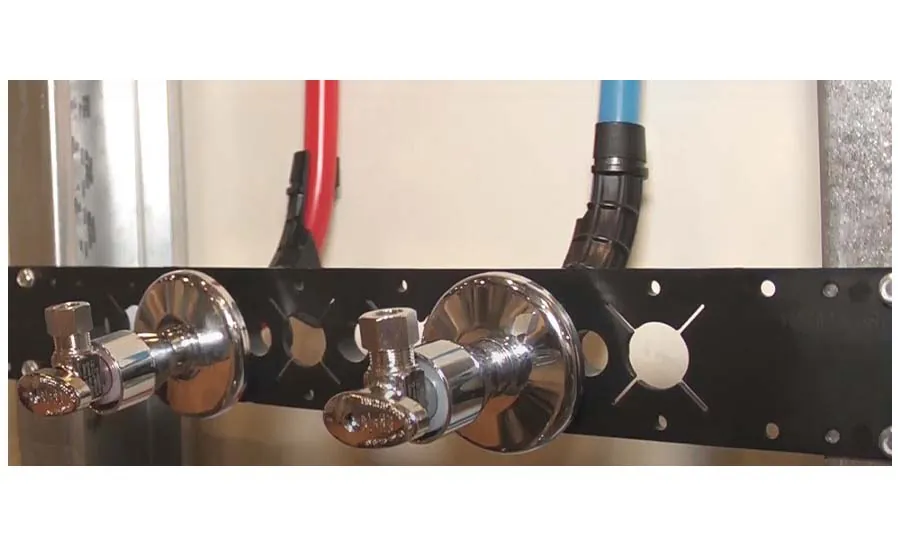

New stub-outs and angle stops landed after a repipe, from our Laguna Hills guide: Main Water Shutoff Valve Replacement

Why old valves fail

Original homes often used gate valves, with a round handle that turns many times. Inside, a metal wedge slides down to block flow. Over decades:

Forcing a stuck valve during an emergency can snap it off and make things worse.

The quarter-turn upgrade

We replace old gate valves with a full-port ball valve. A lever handle closes it with a quarter turn, and you can see at a glance whether it is open or closed. Full-port means the opening matches the pipe size so flow is not reduced.

How the replacement is done

  1. Shut off water at the meter (coordinating with the water district if needed)
  2. Cut out the old valve and inspect the pipe on both sides
  3. Replace corroded pipe stubs rather than attaching a new valve to old metal
  4. Install the new valve, support it, and protect it from weather
  5. Restore water, check for leaks, and walk you through how to use it

The work is usually done in a short visit.

Fixture shutoffs matter too

Every sink and toilet has a small shutoff called an angle stop. If those are original, they may also be seized or leaking. Replacing them lets you isolate one fixture without shutting down the house.

Part of every repipe

When we repipe a Laguna Hills home, a new main shutoff and new angle stops at each fixture are included, along with a new pressure regulator where needed. We show you where everything is before we leave.

A quick readiness checklist

Related reading

See signs you need a whole house repipe in Laguna Hills and how long a repipe takes. Neighbors can visit our Laguna Niguel, Mission Viejo and Aliso Viejo sites, and every city we serve is listed at repipeinc.com.
